Description

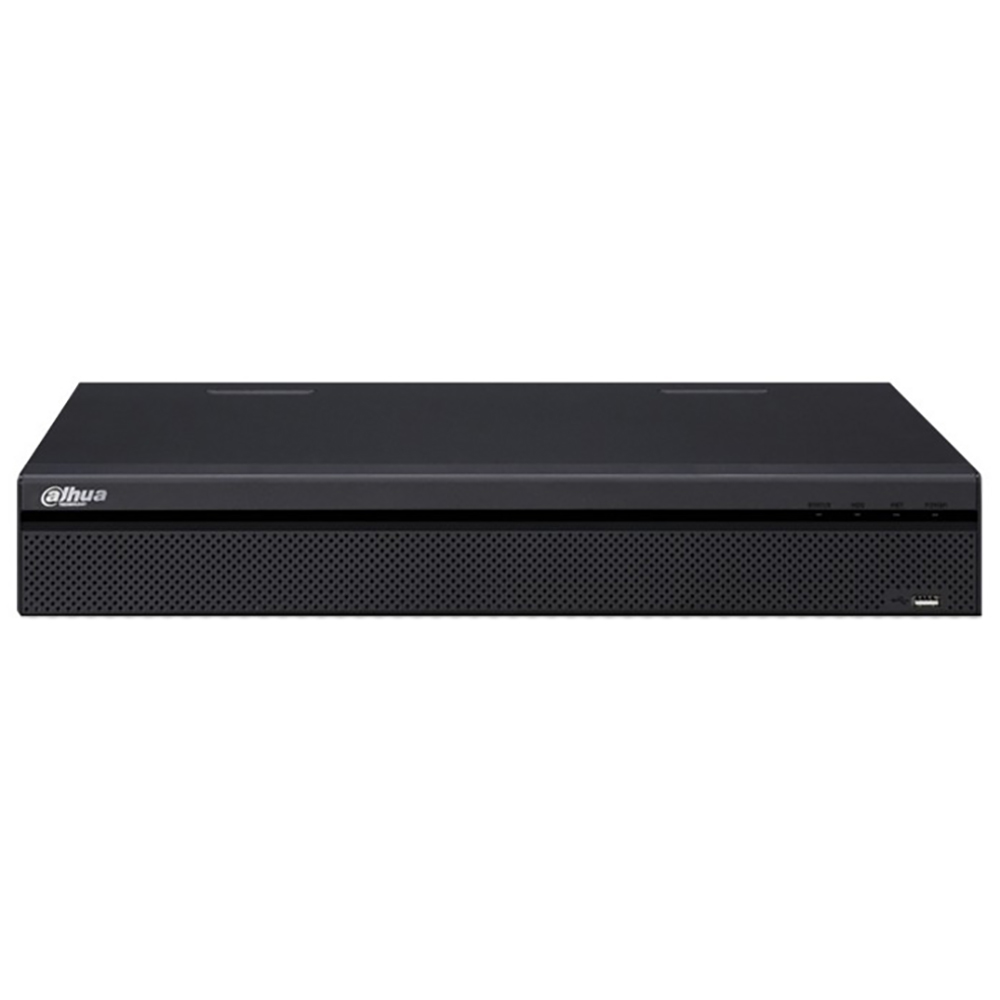

Dahua-NVR english-6MPDH-NVR2108HS-8P-S2 – 8 port POE UPDATED!
Item specifics
- Brand Name: Dahua
- Hard Drive Size: 3.5”
- Two-way Audio: Yes
- Backup Type: Hard Drive
- Hard drive Interface Type: SATA
- Technology: Network
System Main Processor Dual-core embedded processor Operating System Embedded LINUX Audio and Video IP Camera Input 4/8 Channel Two-way Talk 1 Channel Input, 1 Channel Output, RCA Display Interface 1 HDMI, 1 VGA Resolution 1920×1080, 1280×1024, 1280×720, 1024×768 Multi-screen Display 4CH: 1/4 8CH: 1/4/8/9 OSD Camera title, Time, Camera lock, Motion detection, Recording Recording Compression H.264+/H.264 Resolution 6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. Record Rate 80Mbps Bit Rate 16Kbps ~ 20Mbps Per Channel Record Mode Manual, Schedule(Regular(Continuous), MD, Stop Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), and Tampering
Alarm input N/A Relay Output N/A Playback and Backup Sync Playback 8CH: 1/4/8 Search Mode Time /Date, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Backup Mode USB Device/Network Third-party Support Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more Network Interface 1 RJ-45 port (10/100Mbps) Ethernet Port 1 Independent 100Mbps Ethernet Port PoE 8 port * Network Function HTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip Optical Fiber Interface N/A Max. User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 2.4, CGI Conformant Storage Internal HDD 1 SATA III Port, up to 4TB/ 6 TB capacity for each HDD HDD Mode Single eSATA N/A Auxiliary Interface USB 2 ports (1 Rear USB2.0, 1 Front USB2.0) RS232 N/A RS485 N/A Electrical Power Supply Single, DC12V/2A Power Consumption <3W (without HDD) Environmental Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Construction Dimensions(W×D×H) Compact 1U, 260mm×224.9mm×47.6mm (10.2″ x 8.9″ x 1.9″)
Net Weight 0.8kg (1.76 lb) (without HDD) Gross Weight 1.6kg(3.53 lb)(without HDD) Certifications CE EN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014
