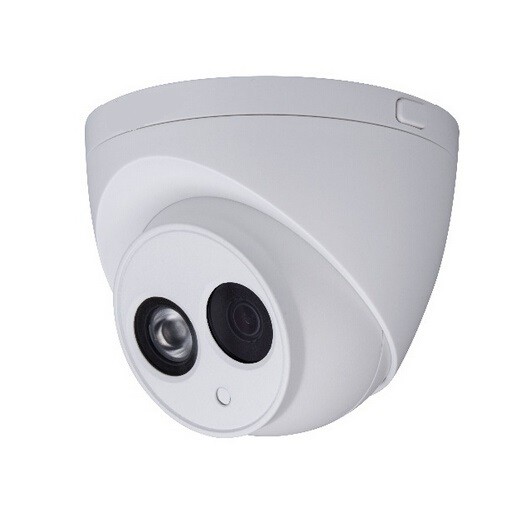

Dahua 4MP IP PoE Built-in mic Dome Camera

$185.00

Dahua 4MP IP Camera -PoE Built-in mic security cctv Dome Camera

SKU: Dahua 4MP IP Camera Category:

Description

Dahua 4MP IP Camera h.265 PoE Built-in microphone IPC-HDW4431C-A IR security cctv Dome Camera onvif HDW4431C-A English firmware NO need to update

Key Features:

>1/3” 4Megapixel progressive scan CMOS
>H.264&MJPEG triple-stream encoding
> 4mp(2560×1440) @ 25fps
>WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Smart Detection supported
>Multiple network monitoring:Web viewer, CMS(DSS/PSS) & DMSS
>Built-in microphone
>3.6mm fixed lens (2.8mm,6mm optional)
>Max. IR LEDs Length 30m
>IP67, PoE

>Onvif 2.4



Technical Parameters:

Model DH-IPC-HDW4431C-A
Camera
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Adjust the angle Level : 0 ° ~ 360 °, Vertical : 0 ° ~ 65 °
Camera Features
Max. IR LEDs Length 50m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length  (2.8mm )
Max Aperture F2.0(F2.0/F2.0)
Focus Control Manual
Angle of View 110°/81°/55°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.265/H.264/H.264B/H.264H/ MJPEG
Resolution 4M(2560×1440) /3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/
D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate Main Stream 4M(1~20fps)/3M(1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 720P(1-5/8fps)(WDR on)
720P(1-18/2fps)(WDR off)
Bit Rate H.264: 4K ~ 32Mbps
Corridor Mode Support
Audio
Compression G.711a;G.711Mu;PCM;AAC,G.726,MPEG2-Layer2,G.722.1,G.729
Interface Built-in microphone
Smart Function
Smart detection Tripwire
Intrusion
Scene change
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,
RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF,PSIA,CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption < 5W
Working Environment -40°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Dimensions Φ110mmx95mm
Weight 0.32Kg(0.55Kg with packaging)



Additional information

Weight 4 kg
